Phase 2

transmission needs external radiator and will rebuilt it too

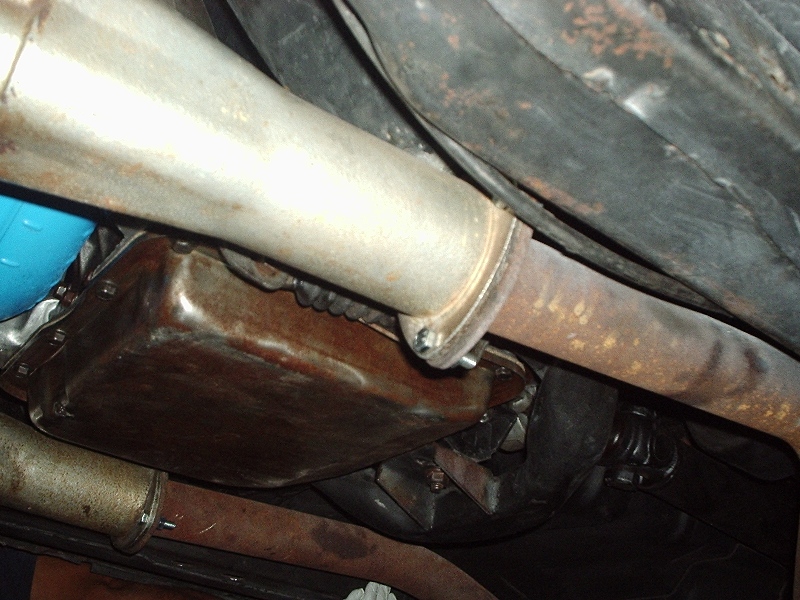

we removed the oil pan to replace gasket due to a leak and found tranny needs to be rebuilt

see the sludge in oil pan mixed with metal shavings, also the new radiator for the tranny will be installed

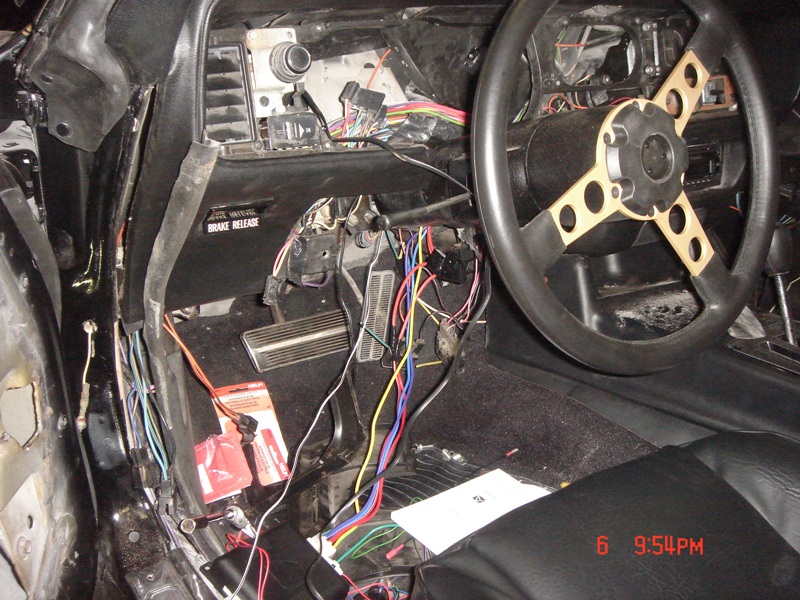

radio done! scary amount of wires huh?

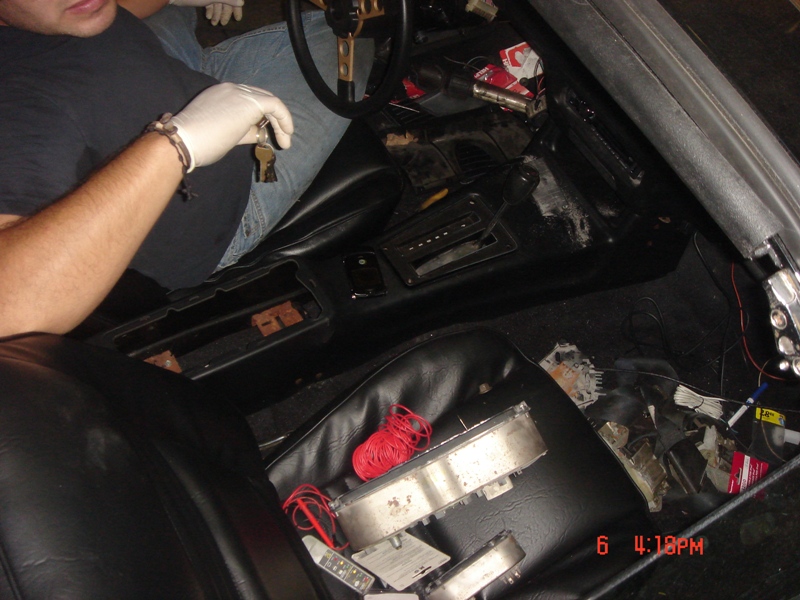

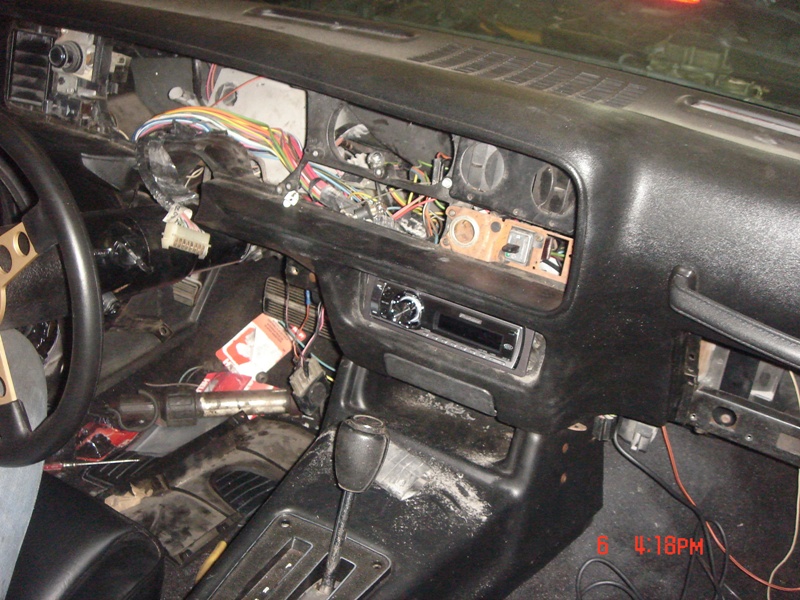

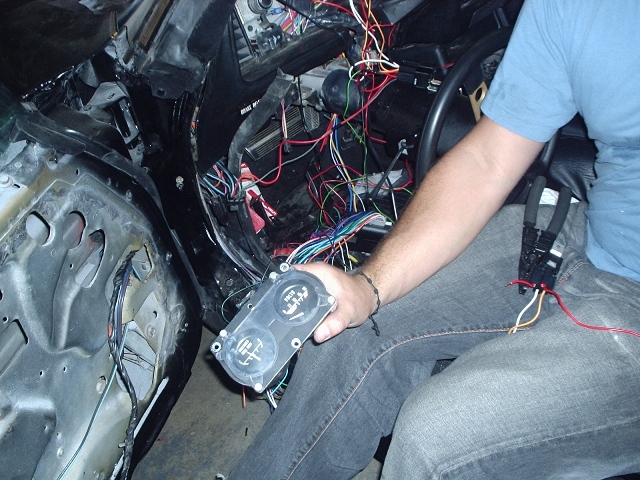

all gauges out, alarm being installed...

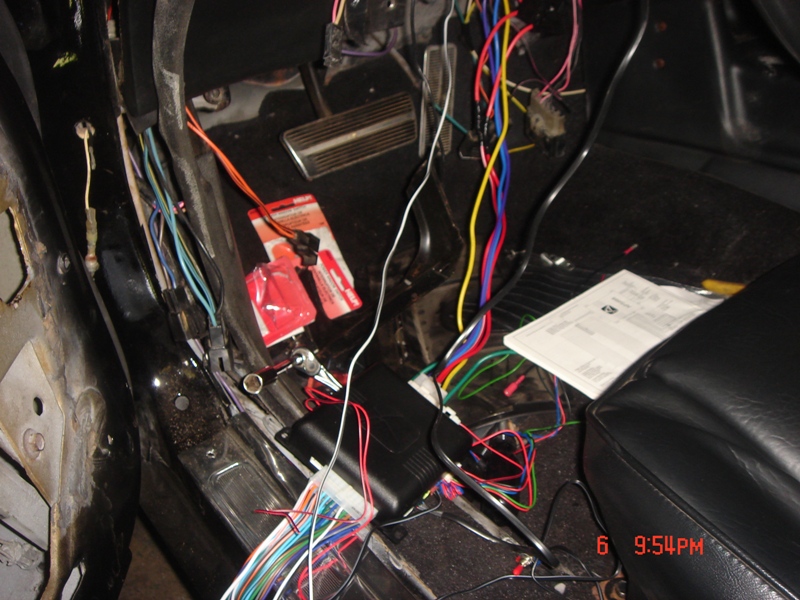

alarm being set up

AND MORE WORK, REPAIR GAUGES, ALL LIGHTS WERE BURNED, PRINTED CIRCUIT FIXED, ETC...

oil filter housing had no gasket,

hard to remove with engine in place

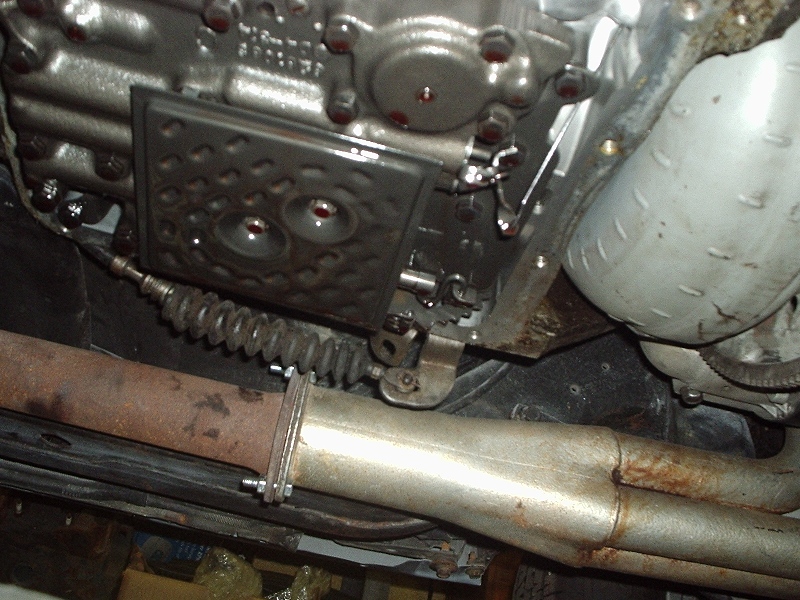

tranny rebuilt and installed

rear brakes being adjusted, rotors will be cut and reinstalled

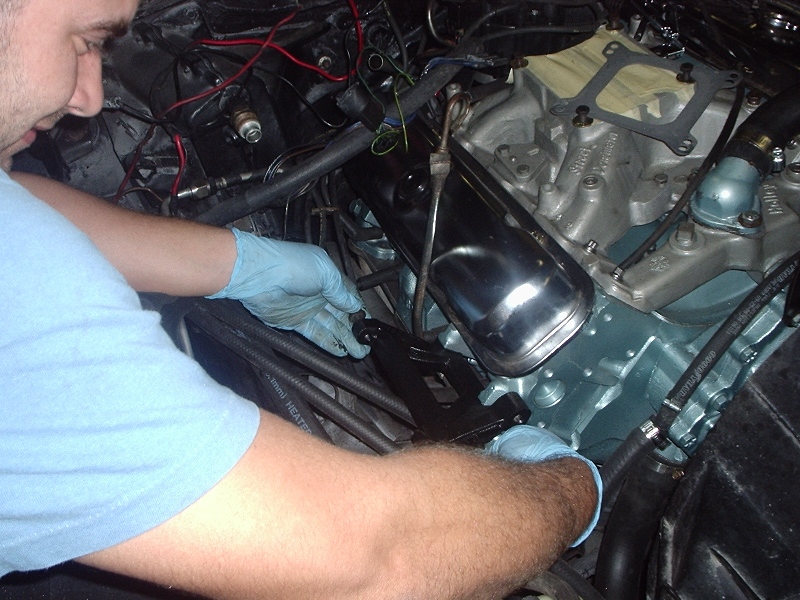

instaling brackets for A/c (HARD TO FIND )

new compressor

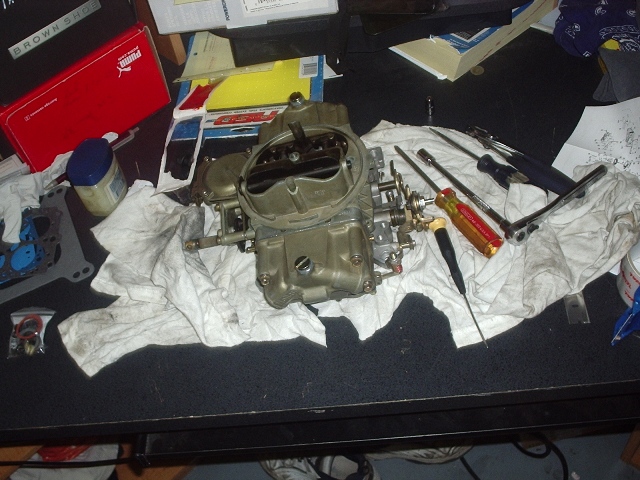

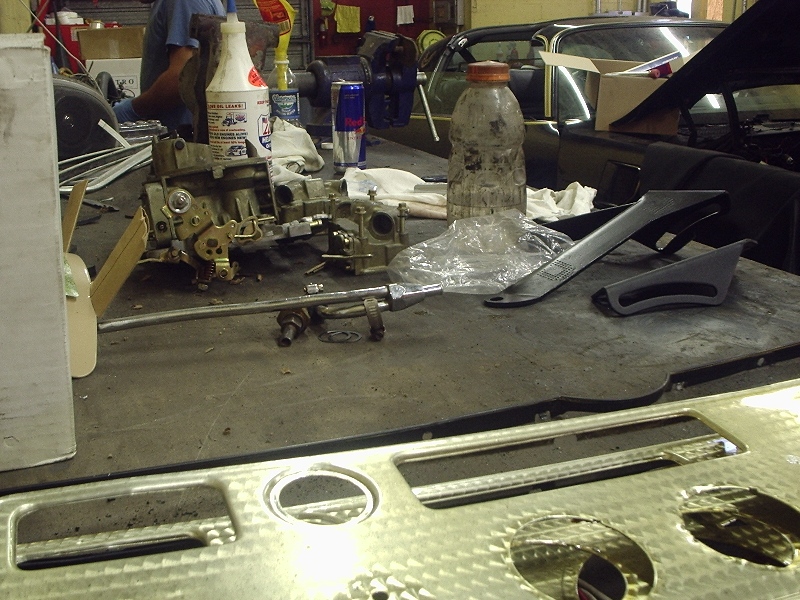

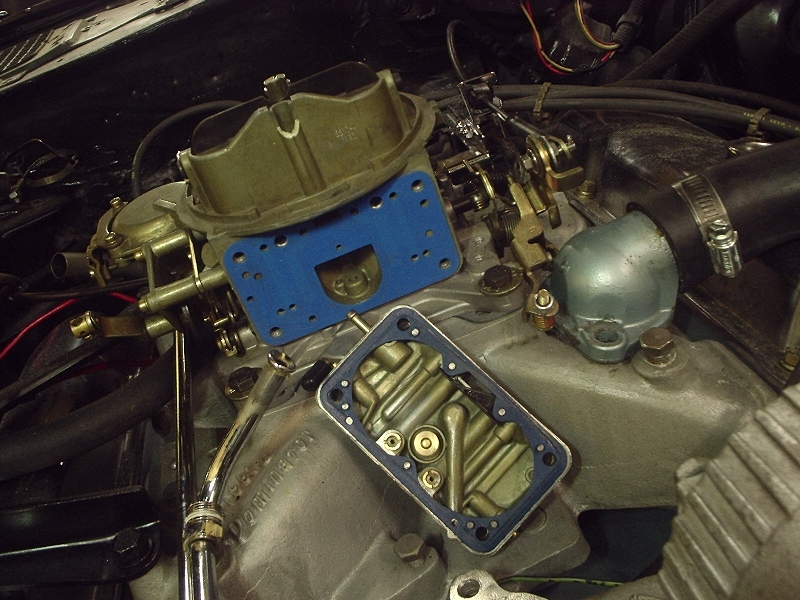

we are rebuilding carb

door panels being installed! 5/31/2007

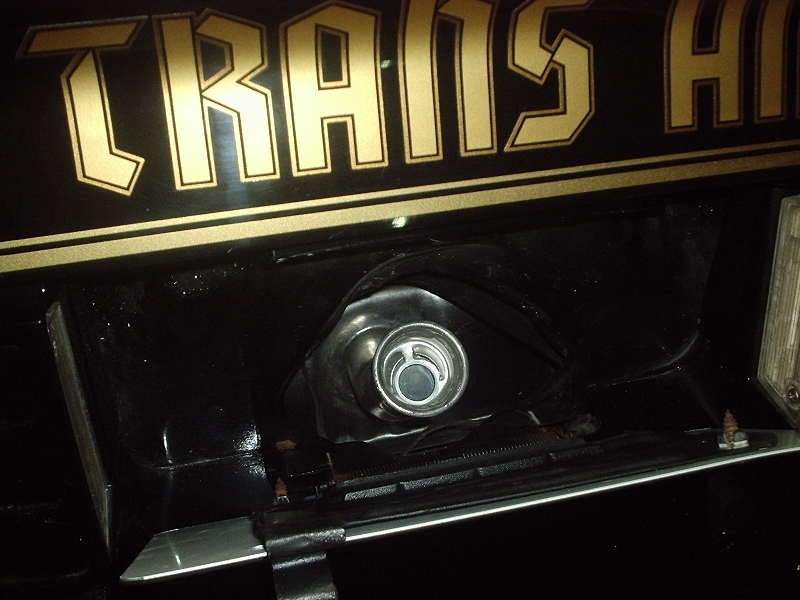

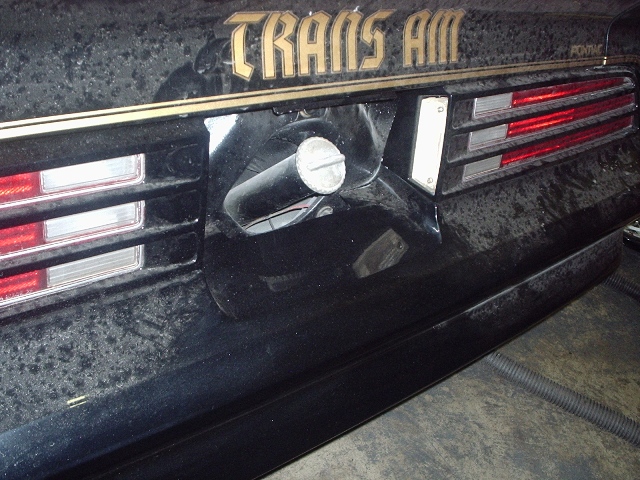

this is the tank I have as you can see shorter neck

right now is too long

also had to get a pair of wiper arms since car had none see below, no arms, will updload more pics tomorrow

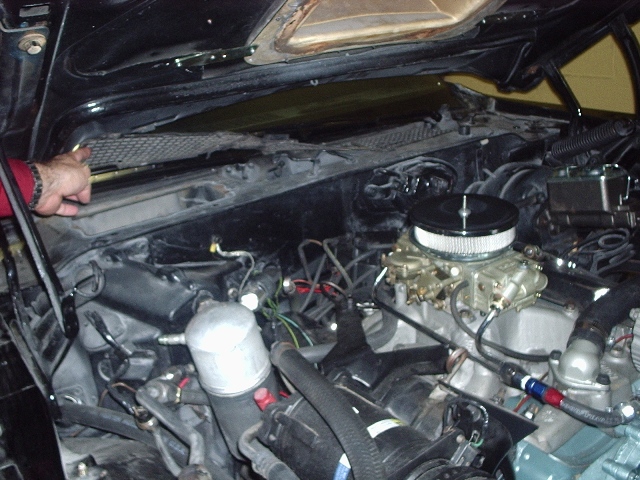

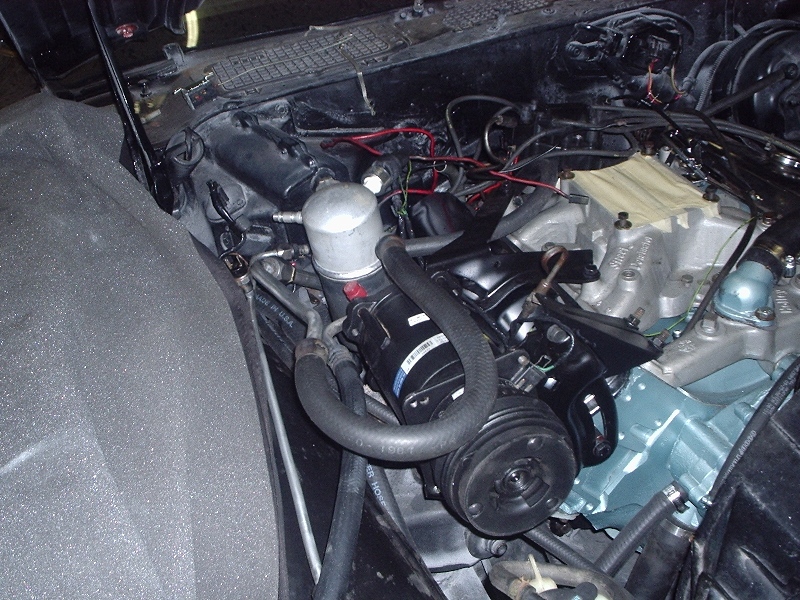

finally new compressor hooked, new brackets, new lines

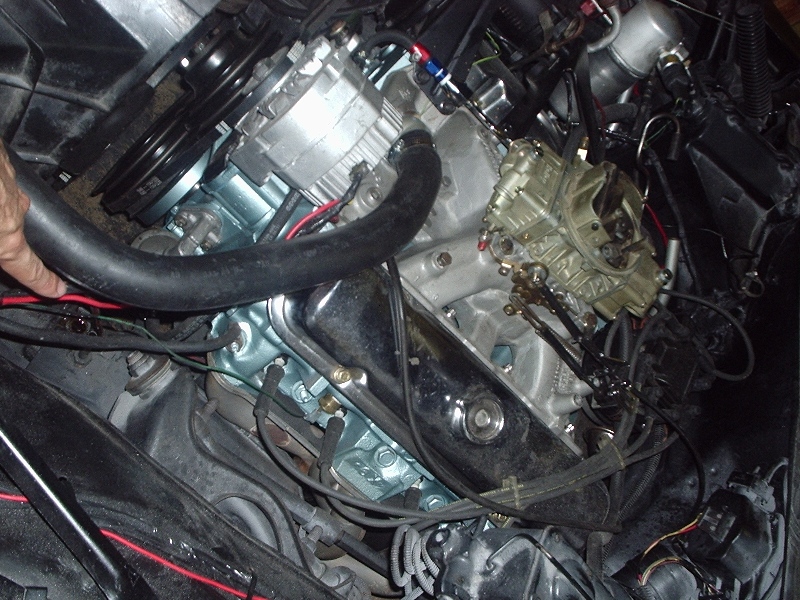

Carburator  done

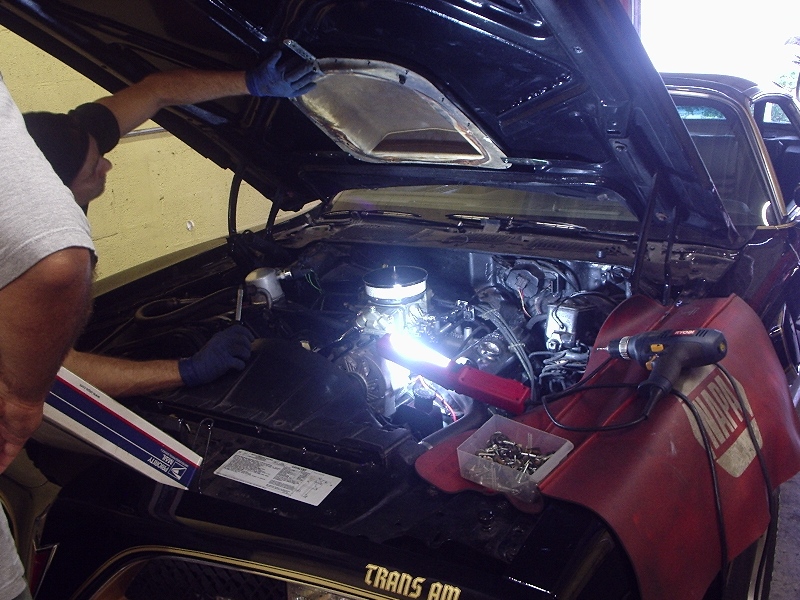

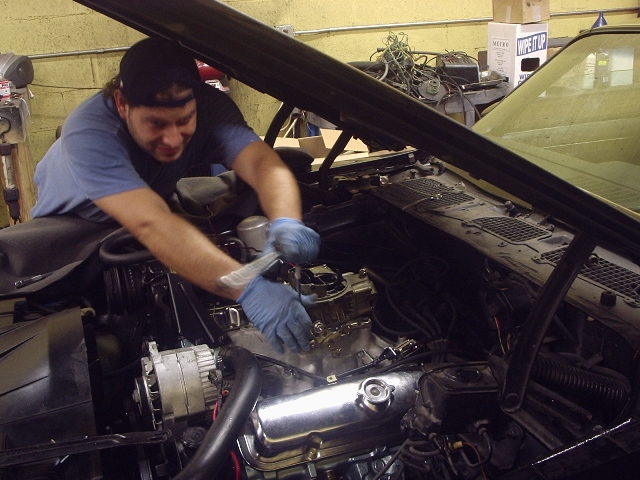

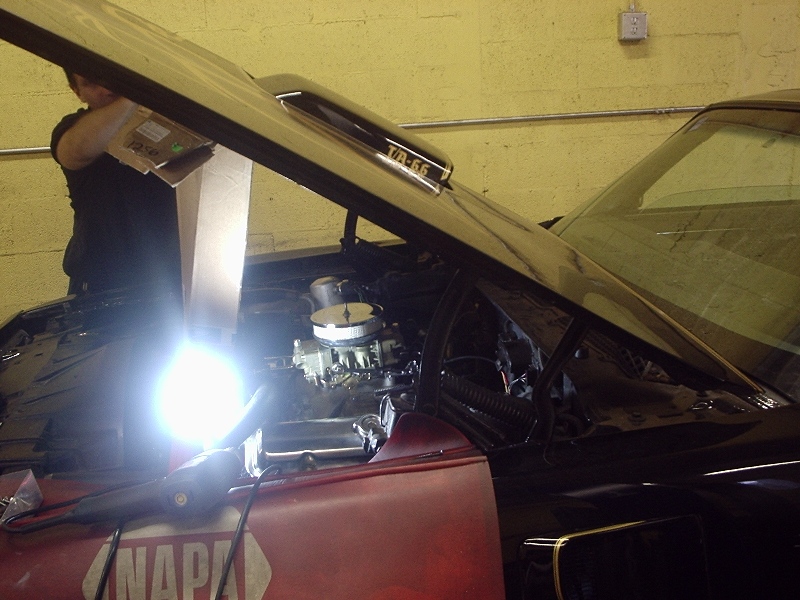

Our head mechanic Carlos re installing the rebuilt carb

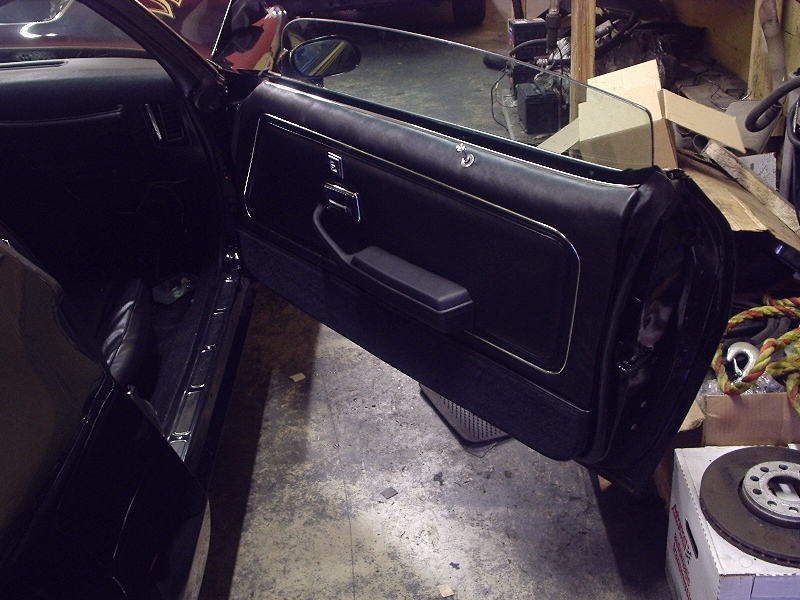

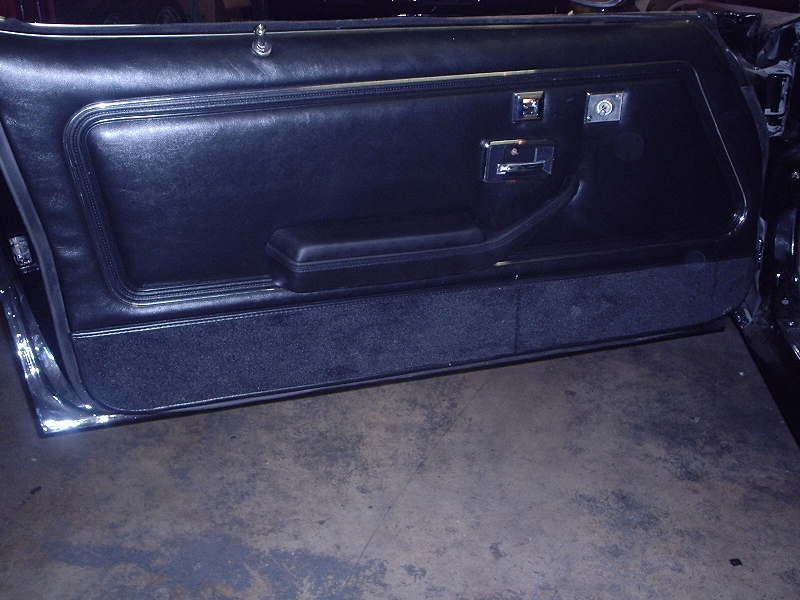

driver side door panel done

passenger side door panel done

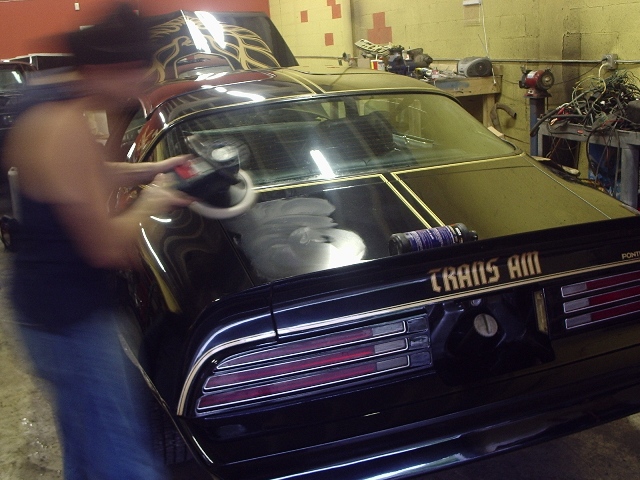

Final buff in order to deliver clean and shinny

Clean and detailed, almost done

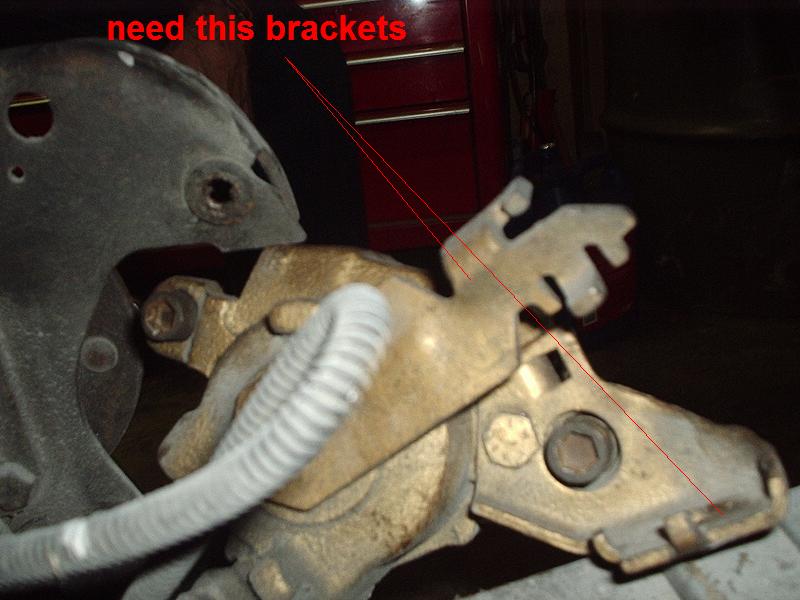

Got the brackets from Brett! we stripped them and refinished

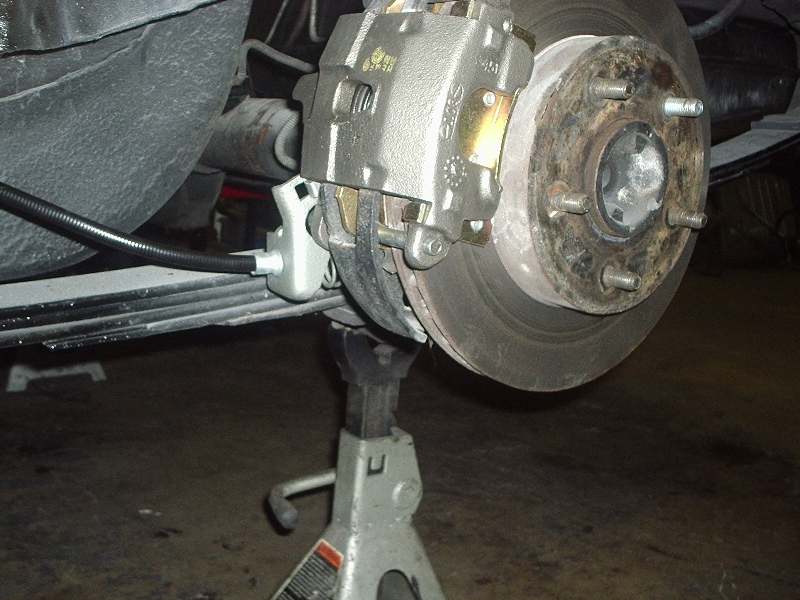

installed! as you can see new caliper too!

gone!

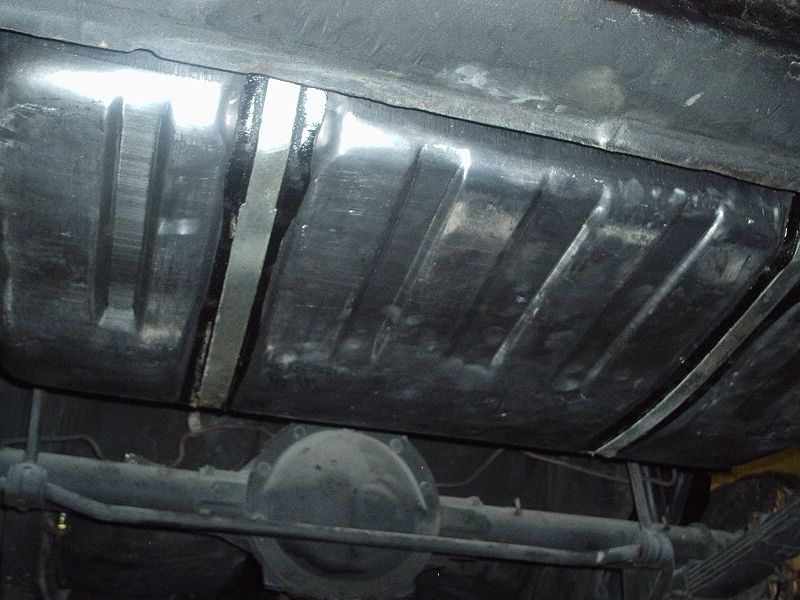

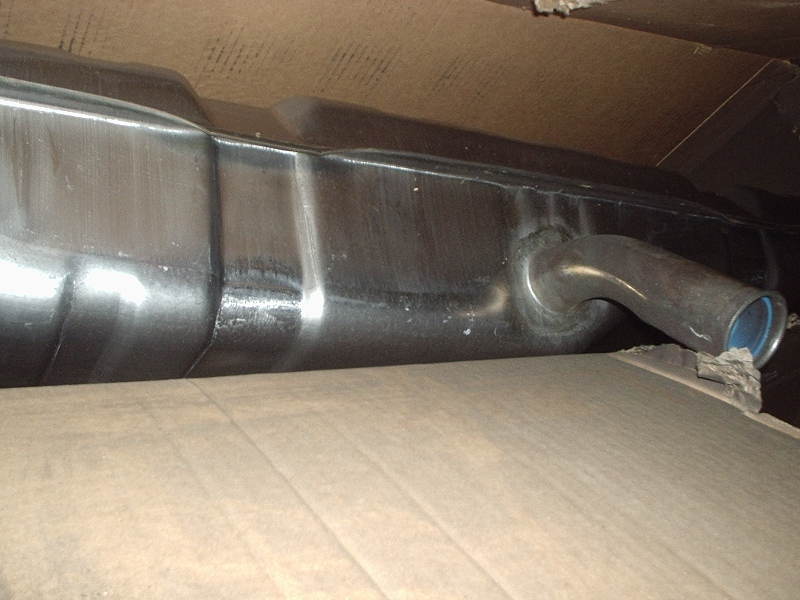

new tank we had to install, could not make work the old one

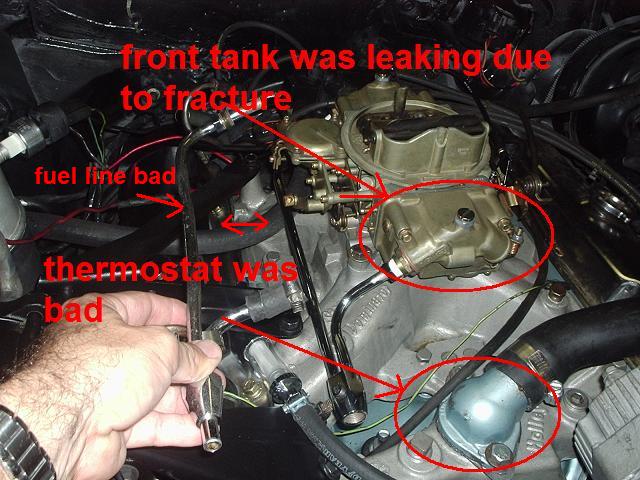

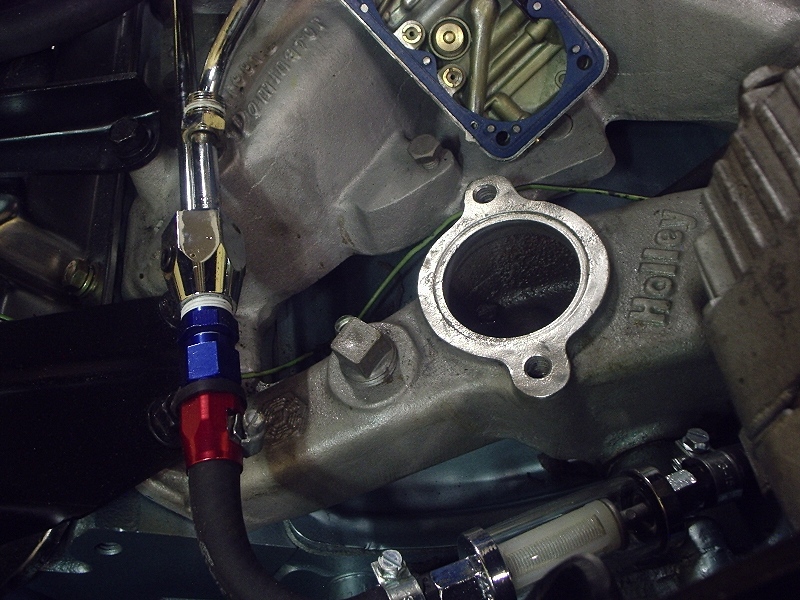

we removed housing and replaced thermostat, and replaced fuel line with brand new one

replaced the front tank with a new holly part

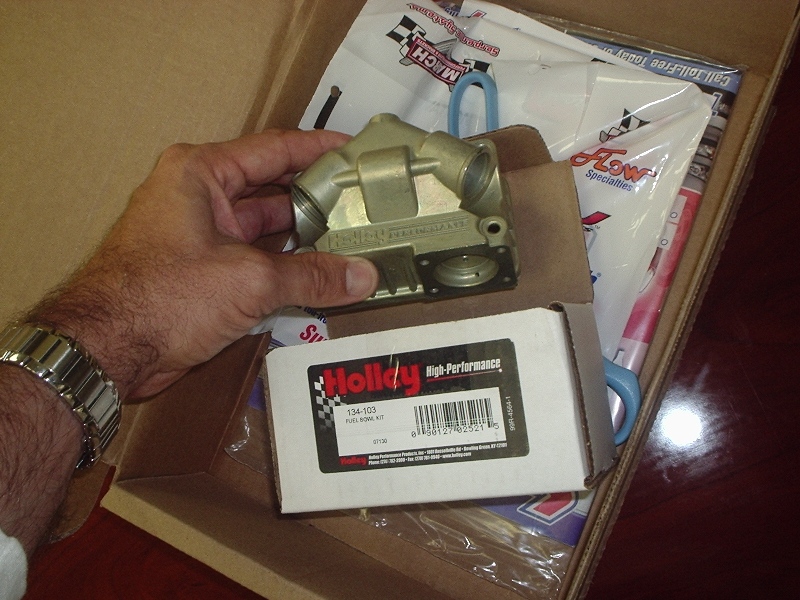

new fuel bowl

I am pointing at the pump that was just removed (no bird this time)

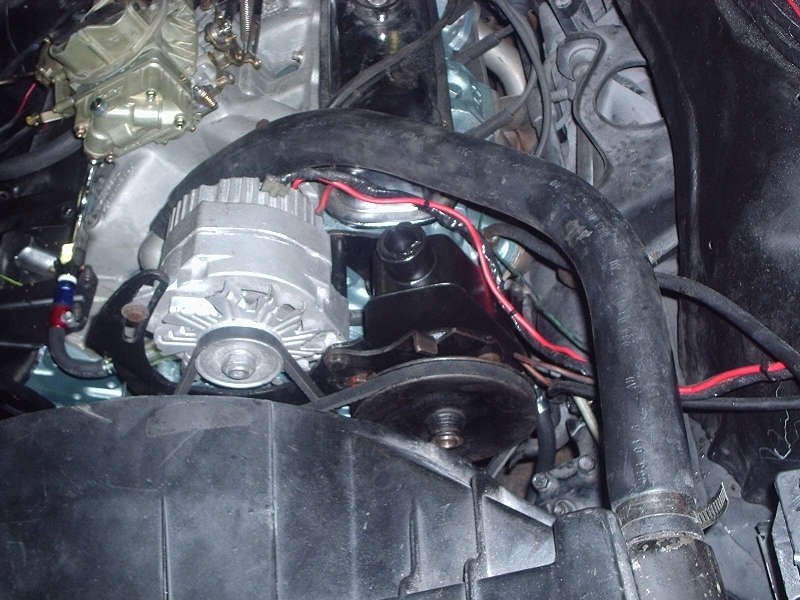

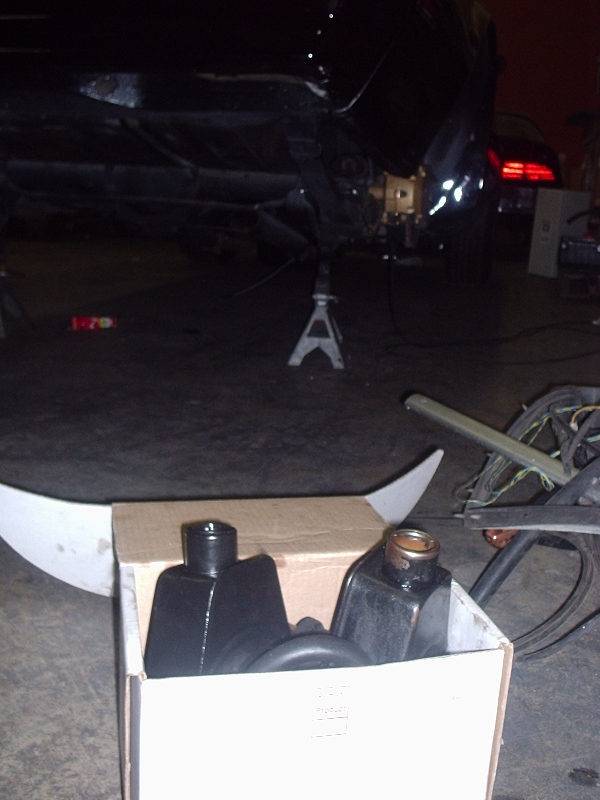

POWER STEERING PUMP ALSO HAD TO REPLACE.../yes was bad, leaking

finally!

took it out for a spin, still have to adjust some stuff, vacuum lines, but runs good and feels very powerful, still needs to break in engine, shoud be taking it to muffler shop to install the dual exhaust and splitters tomorrow.

    This car came with high performance set up shaker had to be be attahed to the hood

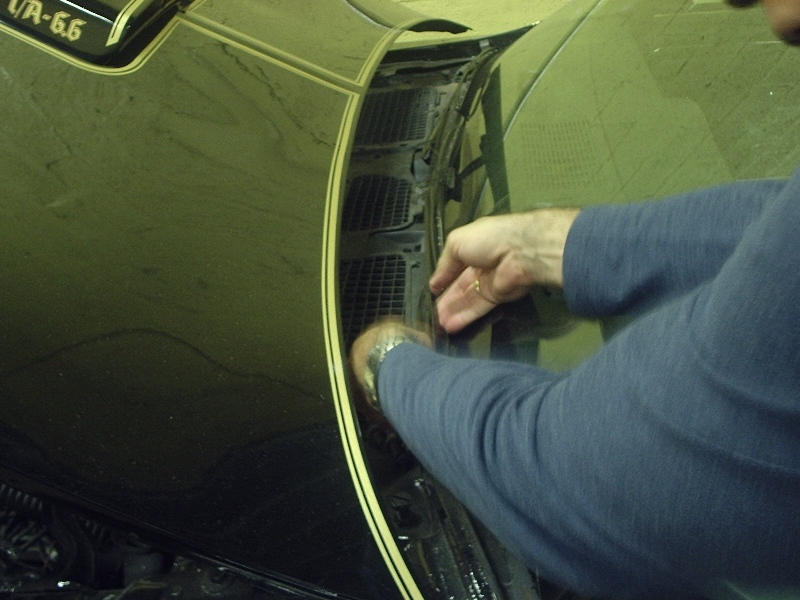

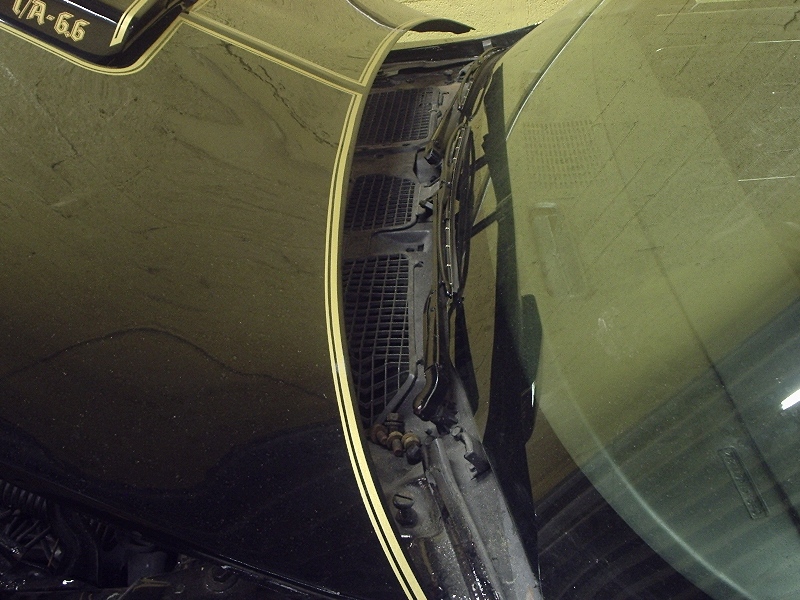

wiper arms installed and new blades

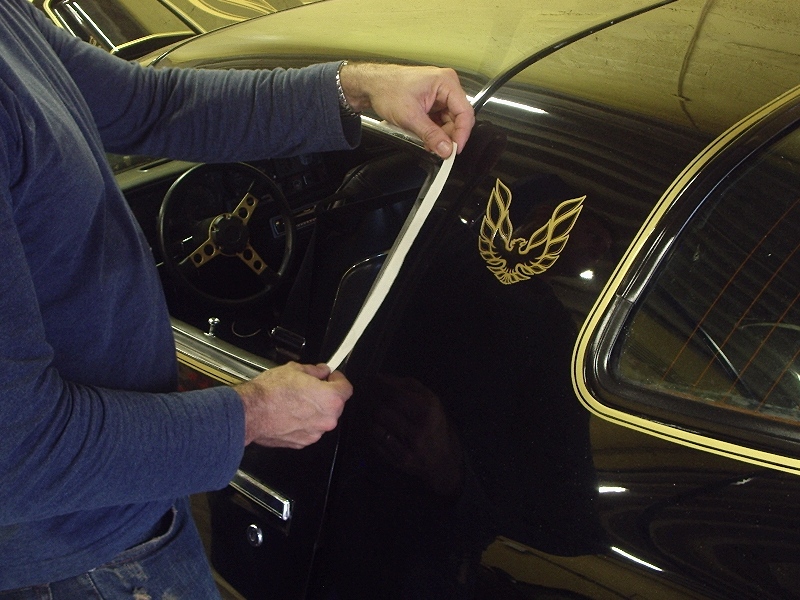

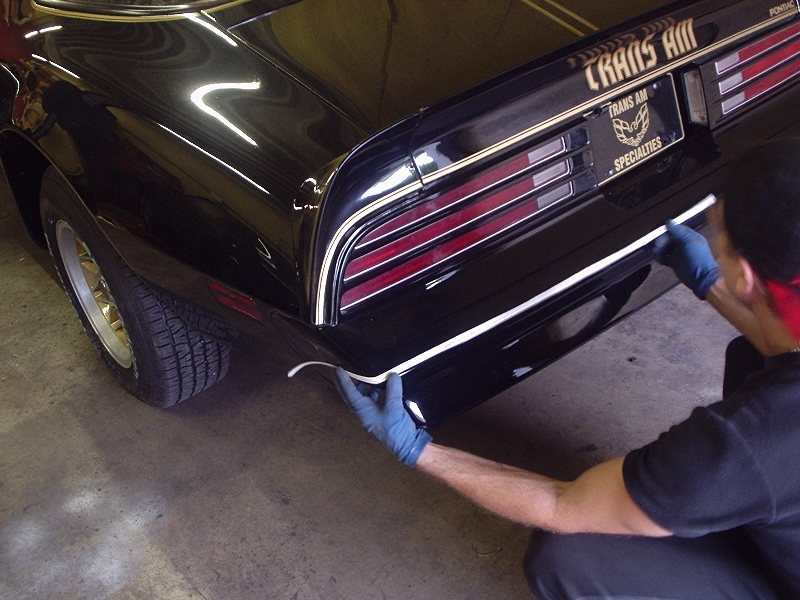

apply all missing decals here and there

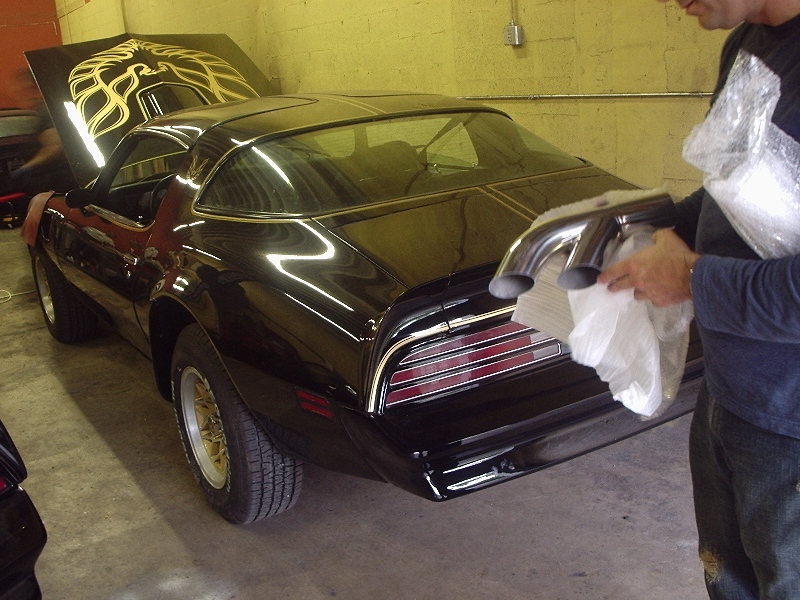

dual splitters will be installed with the new exhaust

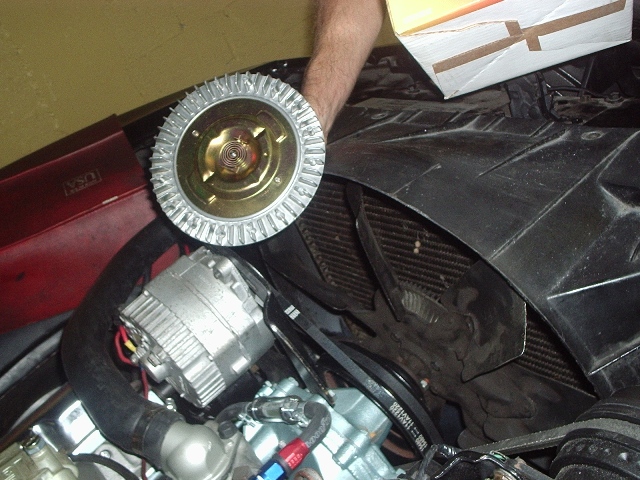

well, tested car again with A/C before taking it to muffler shop....guess what fan clutch no blowing enough, temp went up, fortunately I had a new one in my shelf and replaced it

had also a leak on the under dash ducts, sealed and installed along new vent

it runs!!!!!!!!!!! to mufflers shop (car has your name on the windshield)

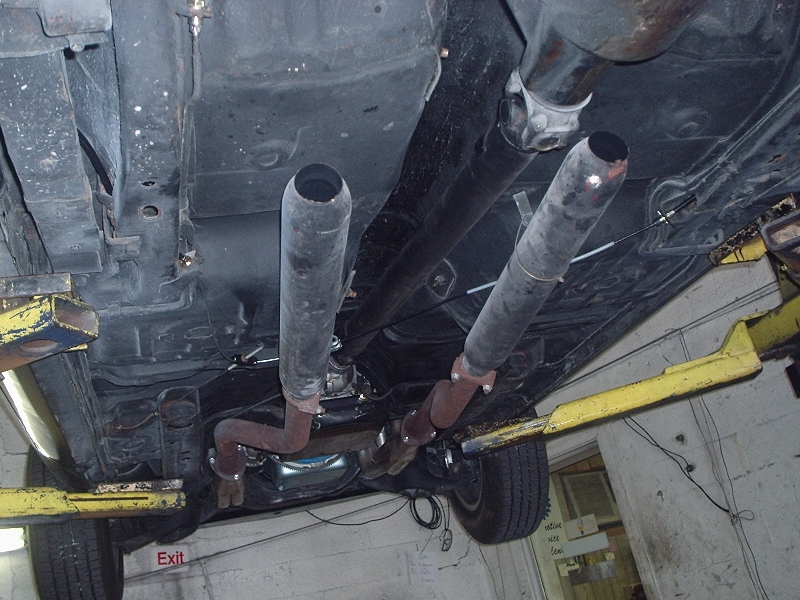

I ordered to get rid of those temporary pipes pipes it had and install new muffler from headers down to rear splitters

NEW TIPS

NEW PIPES AND NEW FLOW MASTER MUFFLERS

COMPLETION PHOTOS TONIGHT (IF IS NOT RAINING AGAIN TODAY)

*recreation

TO BE CONTINUED....
